Greenville Museum of Modern Art

Award Winner
Specialty
Design Build
Design Assist
Cast Stone
Architectural Precast
Greenville, SC
2023

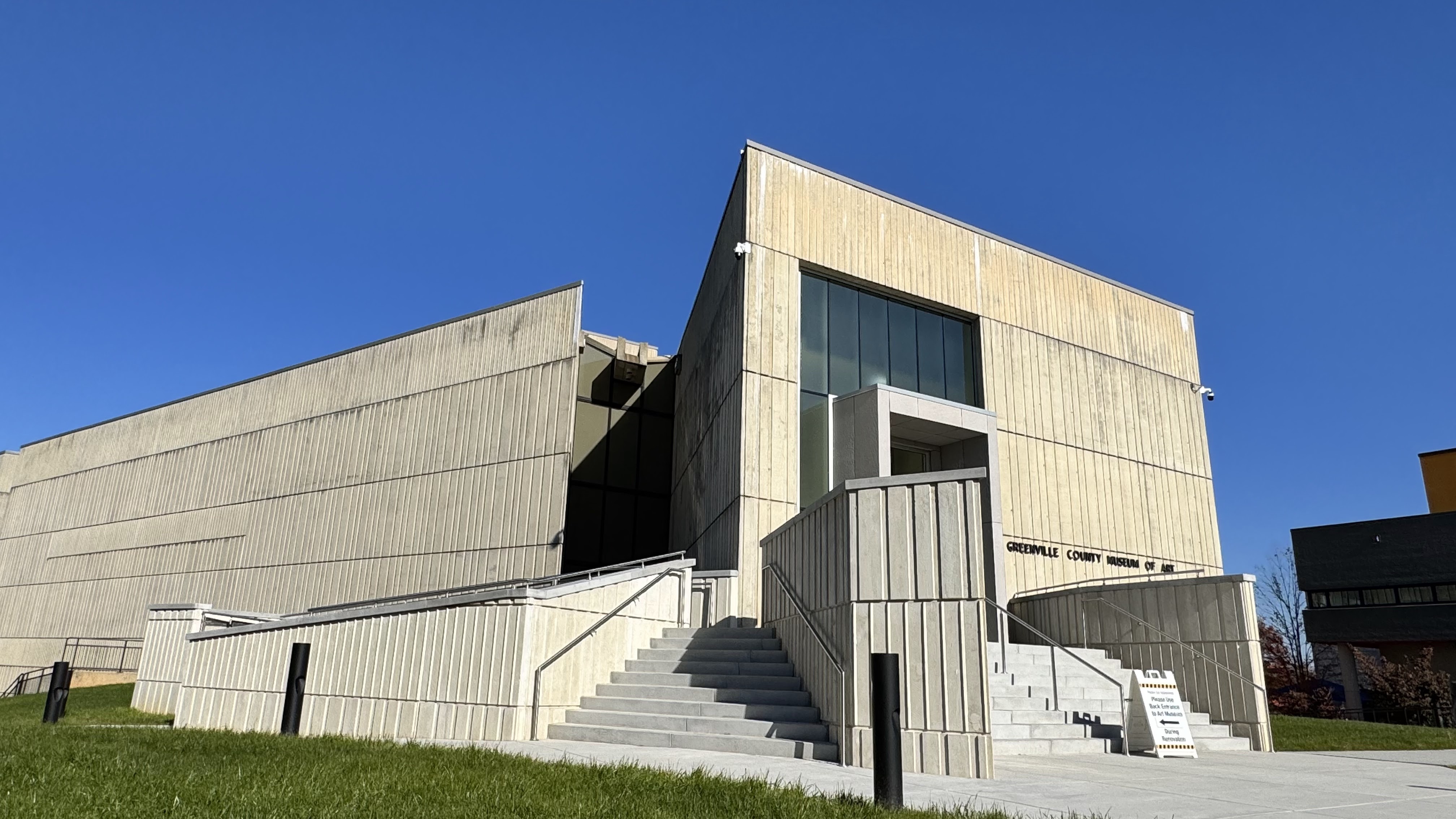

At the Greenville Museum of Modern Art, what began as a request to evaluate coping details quickly evolved into a comprehensive redesign that significantly improved the project’s quality, timeline, and long-term performance. Lucas Concrete was originally approached to advise on the coping for a cast-in-place concrete wall. Upon closer review, the team identified a broader opportunity: to replace the cast-in-place wall section itself with precast concrete.

The wall’s design required more than a typical board-form finish—it needed to match the texture, tone, and patina of a 60-year-old structure. Achieving this by traditional methods would have been labor-intensive, inconsistent, and difficult to control on site. The Lucas team proposed a full precast solution that replicated the required finish with far greater accuracy and efficiency.

Once presented to the owner, the value of the alternative approach was clear. The resulting installation was completed in under two weeks—a dramatic improvement over the original three-month projection for cast-in-place construction. The finished work not only met the aesthetic goals of the museum but exceeded expectations in both precision and speed.

No items found.

This project, in progress

When the general contractor first reached out to Lucas Concrete, the request was focused on evaluating coping details for an existing cast-in-place wall. But upon reviewing the specifications and visiting the site, the Lucas team recognized a larger opportunity to improve both constructability and quality.

The wall in question needed to emulate the look of a 60-year-old building—not just in texture, but in color consistency and surface quality. Replicating this finish on site using traditional cast-in-place methods would have required rare craftsmanship, ideal weather conditions, and extensive mockups—none of which were guaranteed.

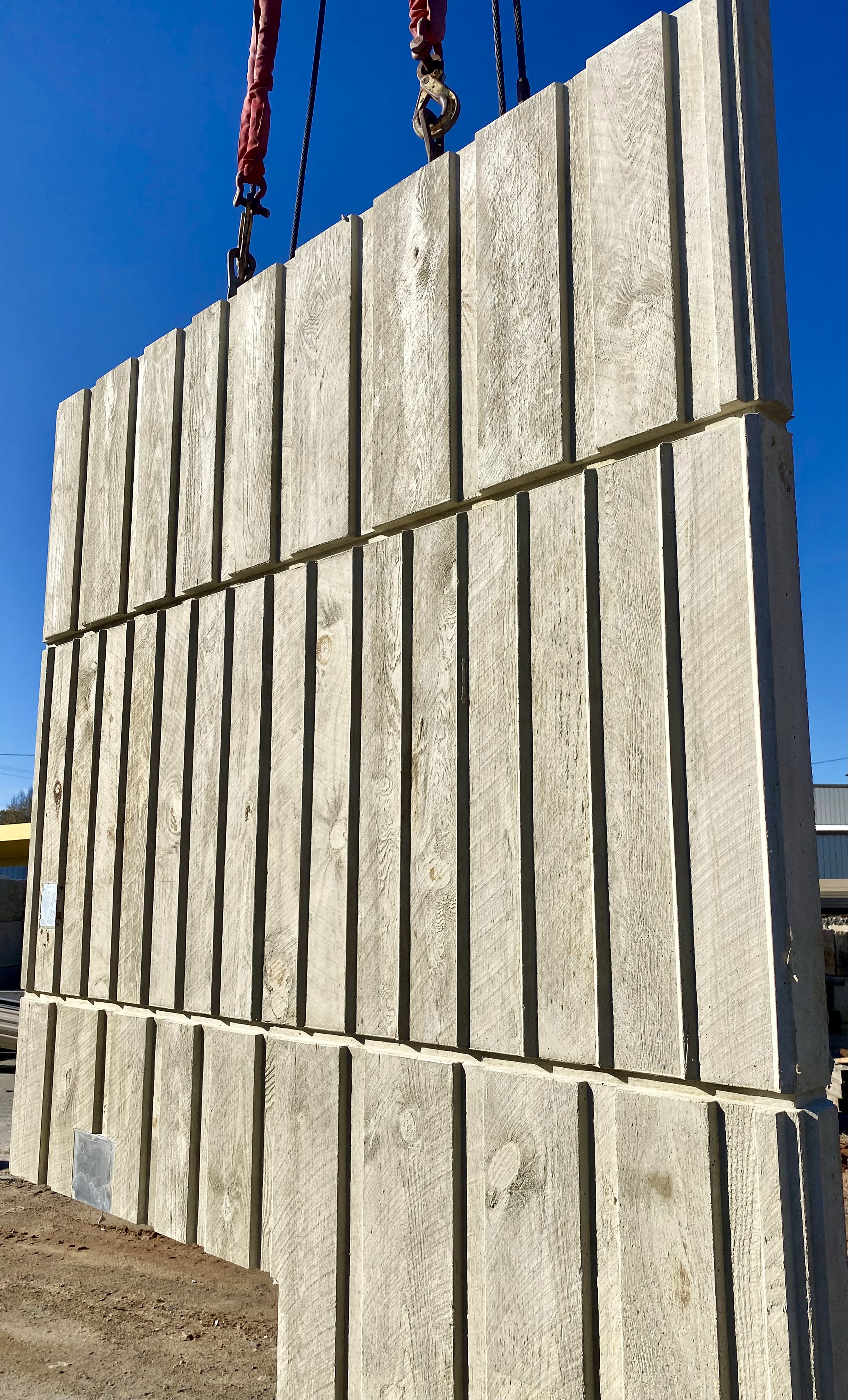

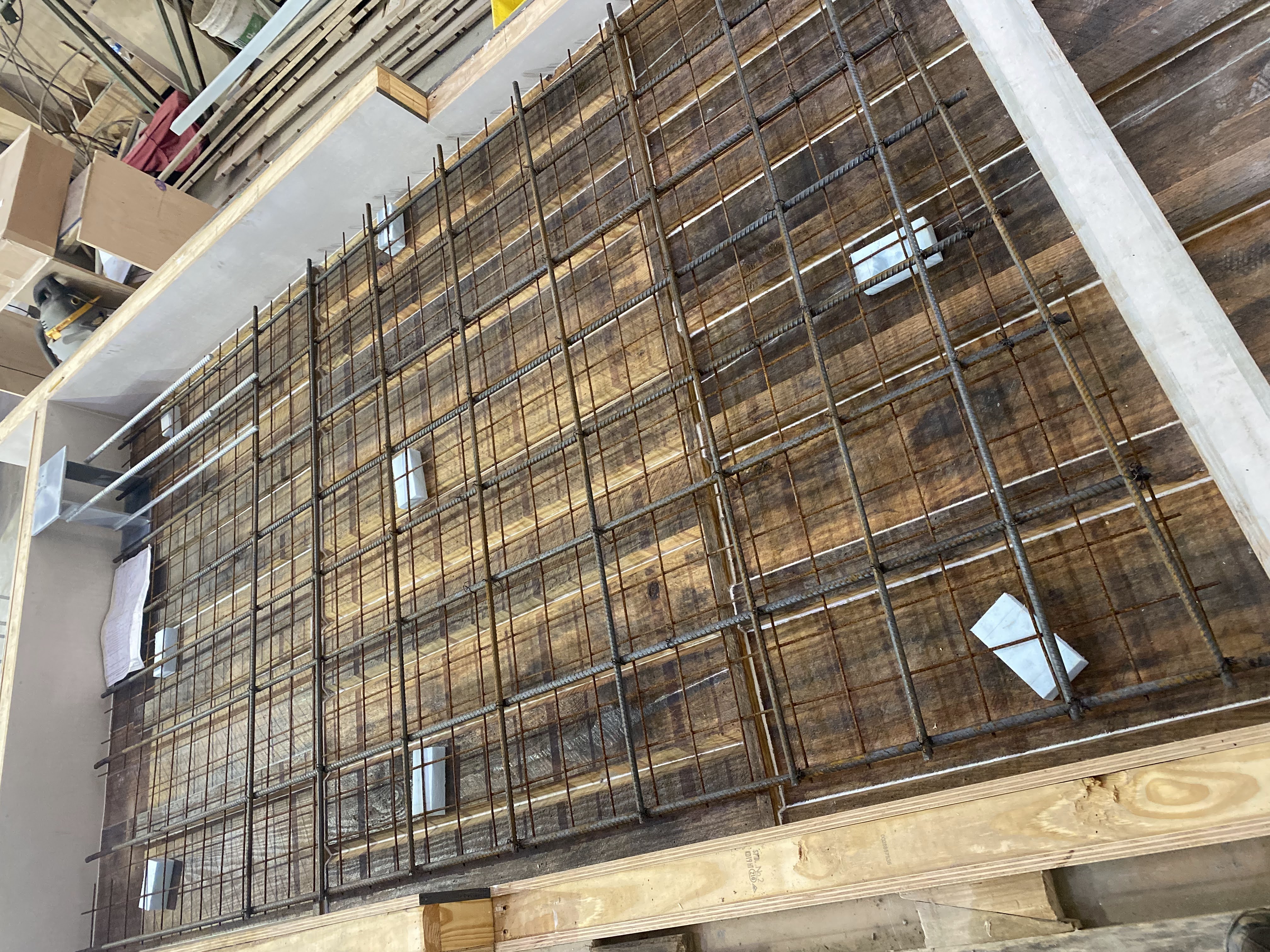

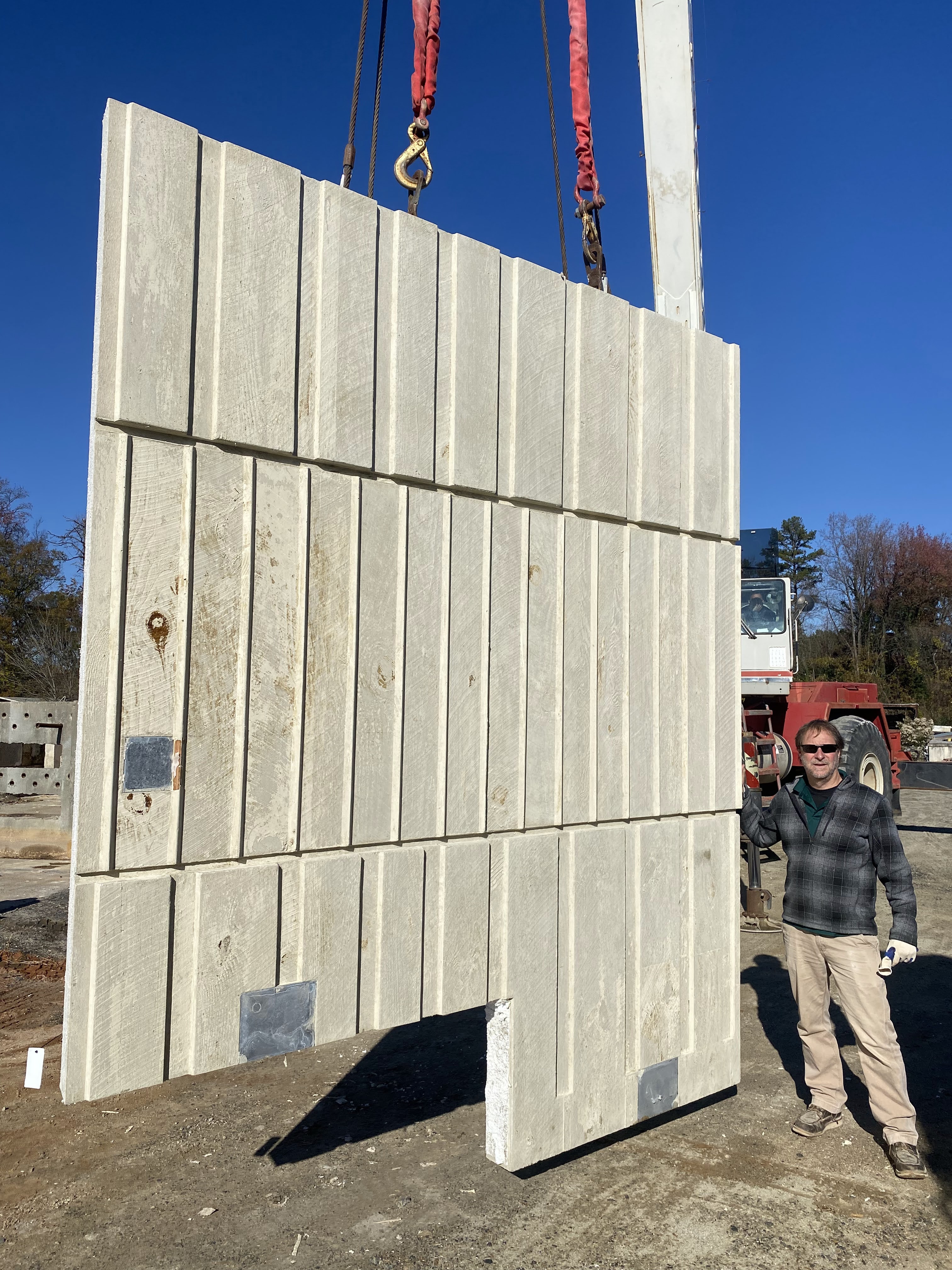

Lucas Concrete proposed an alternative means and methods: a precast solution using carefully developed molds and custom color batching to match the historic finish. The approach offered:

  • Controlled surface texture replication off-site
  • Greater color consistency across all panels
  • Reduced on-site labor and installation risk
  • A dramatically accelerated schedule

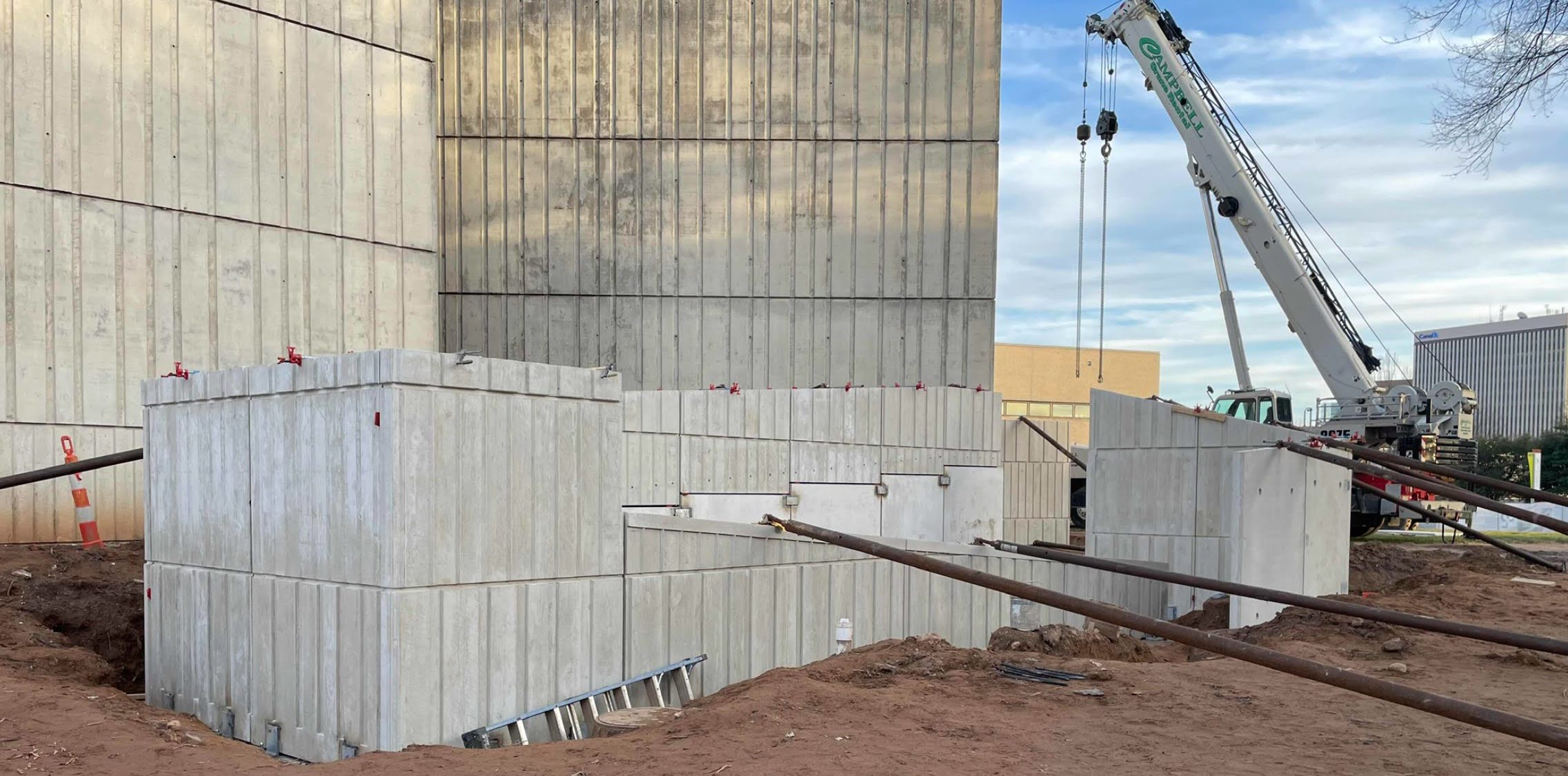

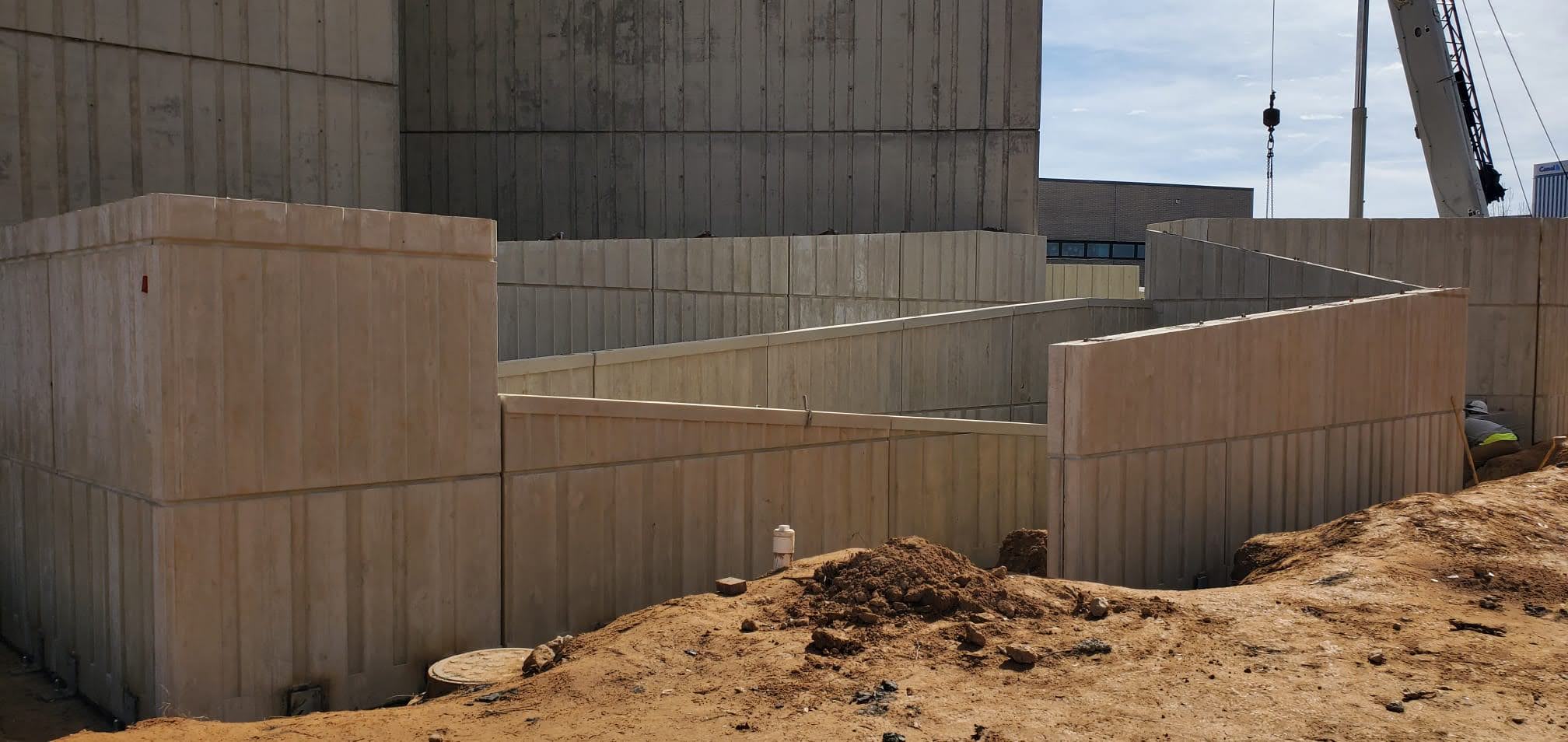

Once the contractor and owner reviewed the plan, they quickly agreed to the change. The revised precast solution not only eliminated site complexities but also installed in less than two weeks, compared to the original estimate of three months using cast-in-place methods.

This project exemplifies how early engagement, technical insight, and innovative thinking can elevate even the smallest scope into a transformative success story.
